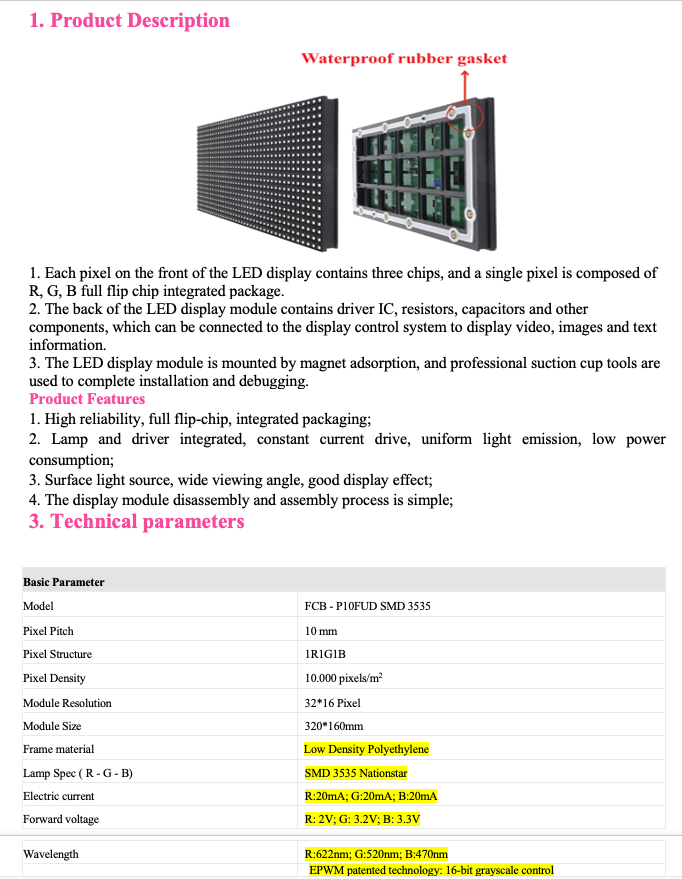

- Product Description
- Each pixel on the front of the LED display contains three chips, and a single pixel is composed of R, G, B full flip chip integrated package.
- The back of the LED display module contains driver IC, resistors, capacitors and other components, which can be connected to the display control system to display video, images and text information.
- The LED display module is mounted by magnet adsorption, and professional suction cup tools are used to complete installation and debugging.
Product Features
- High reliability, full flip-chip, integrated packaging;
- Lamp and driver integrated, constant current drive, uniform light emission, low power consumption;
- Surface light source, wide viewing angle, good display effect;
- The display module disassembly and assembly process is simple;
- Technical parameters
| Basic Parameter | |
| Model | FCB – P10FUD SMD 3535 |
| Pixel Pitch | 10 mm |
| Pixel Structure | 1R1G1B |
| Pixel Density | 10.000 pixels/m2 |
| Module Resolution | 32*16 Pixel |
| Module Size | 320*160mm |
| Frame material | Low Density Polyethylene |
| Lamp Spec ( R – G – B) | SMD 3535 Nationstar |
| Electric current | R:20mA; G:20mA; B:20mA |
| Forward voltage | R: 2V; G: 3.2V; B: 3.3V |

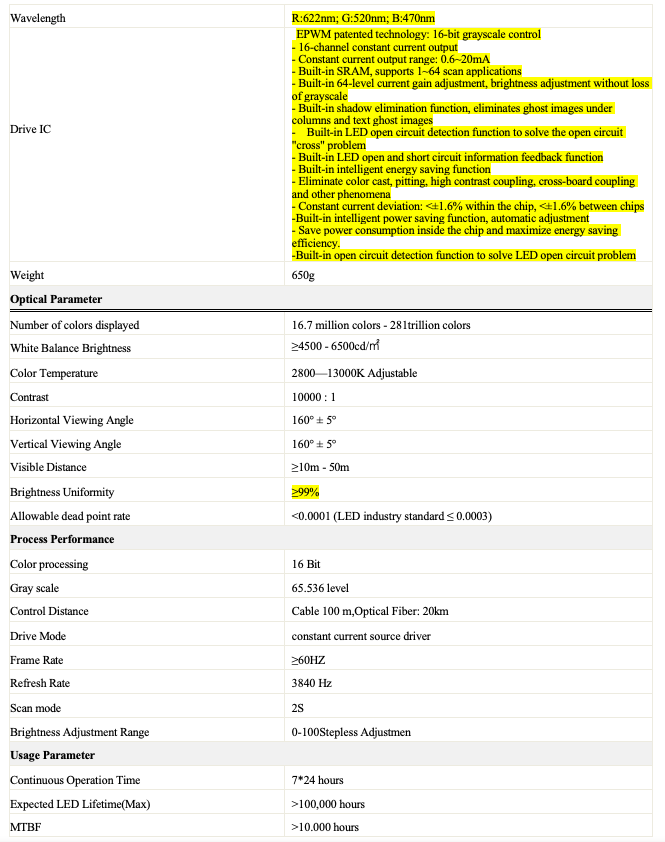

| Wavelength | R:622nm; G:520nm; B:470nm |
|
Drive IC |
EPWM patented technology: 16-bit grayscale control
– 16-channel constant current output – Constant current output range: 0.6~20mA – Built-in SRAM, supports 1~64 scan applications – Built-in 64-level current gain adjustment, brightness adjustment without loss of grayscale – Built-in shadow elimination function, eliminates ghost images under columns and text ghost images – Built-in LED open circuit detection function to solve the open circuit “cross” problem – Built-in LED open and short circuit information feedback function – Built-in intelligent energy saving function – Eliminate color cast, pitting, high contrast coupling, cross-board coupling and other phenomena – Constant current deviation: <±1.6% within the chip, <±1.6% between chips -Built-in intelligent power saving function, automatic adjustment – Save power consumption inside the chip and maximize energy saving efficiency. -Built-in open circuit detection function to solve LED open circuit problem |
| Weight | 650g |
| Optical Parameter | |
| Number of colors displayed | 16.7 million colors – 281trillion colors |
| White Balance Brightness | ≥4500 – 6500cd/㎡ |
| Color Temperature | 2800—13000K Adjustable |
| Contrast | 10000 : 1 |
| Horizontal Viewing Angle | 160° ± 5° |
| Vertical Viewing Angle | 160° ± 5° |
| Visible Distance | ≥10m – 50m |
| Brightness Uniformity | ≥99% |
| Allowable dead point rate | <0.0001 (LED industry standard ≤ 0.0003) |
| Process Performance | |
| Color processing | 16 Bit |
| Gray scale | 65.536 level |
| Control Distance | Cable 100 m,Optical Fiber: 20km |
| Drive Mode | constant current source driver |
| Frame Rate | ≥60HZ |
| Refresh Rate | 3840 Hz |
| Scan mode | 2S |
| Brightness Adjustment Range | 0-100Stepless Adjustmen |
| Usage Parameter | |
| Continuous Operation Time | 7*24 hours |
| Expected LED Lifetime(Max) | >100,000 hours |
| MTBF | >10.000 hours |

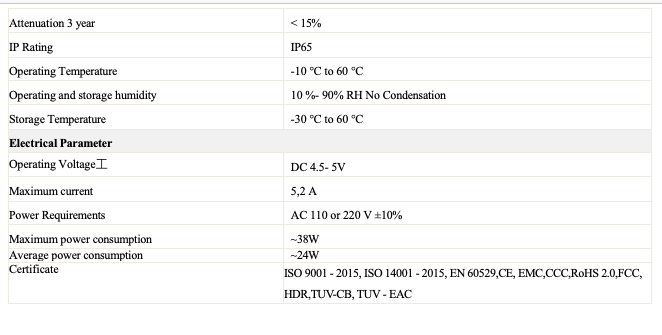

| Attenuation 3 year | < 15% |
| IP Rating | IP65 |
| Operating Temperature | -10 ℃ to 60 ℃ |
| Operating and storage humidity | 10 %- 90% RH No Condensation |
| Storage Temperature | -30 ℃ to 60 ℃ |
| Electrical Parameter | |
| Operating Voltage工 | DC 4.5- 5V |
| Maximum current | 5,2 A |
| Power Requirements | AC 110 or 220 V ±10% |
| Maximum power consumption | ~38W |
| Average power consumption | ~24W |
| Certificate | ISO 9001 – 2015, ISO 14001 – 2015, EN 60529,CE, EMC,CCC,RoHS 2.0,FCC, HDR,TUV-CB, TUV – EAC |
